快速晶闸管
KK4 1500-18

KK4 1500-18

KK4 1500-25

KK4 1500-25

KK4 1600-16

KK4 1600-16

KK9 1000-16

KK9 1000-16

KK9 1000-18

KK9 1000-18

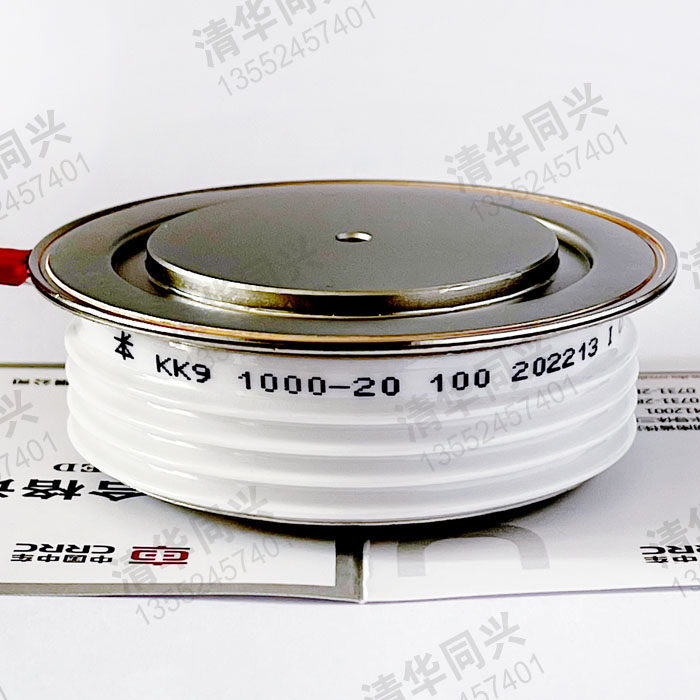

KK9 1000-20

KK9 1000-20

KK9 1200-16

KK9 1200-16

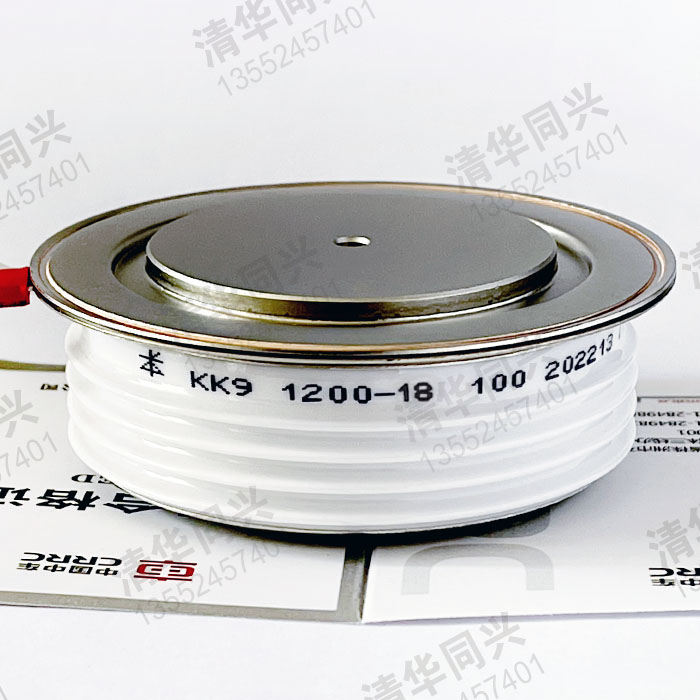

KK9 1200-18

KK9 1200-18

KK9 1200-20

KK9 1200-20

KK9 1500-16

KK9 1500-16

KK9 1500-18

KK9 1500-18

KK9 1500-20

KK9 1500-20

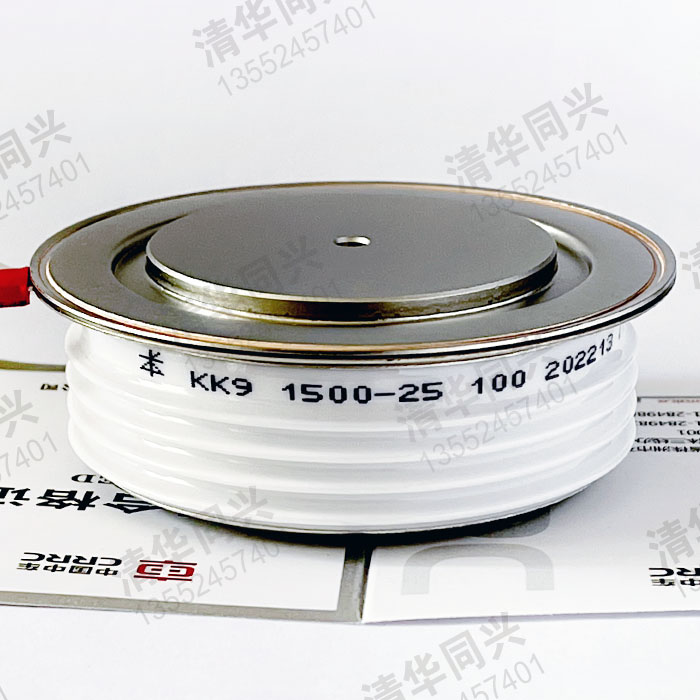

KK9 1500-25

KK9 1500-25

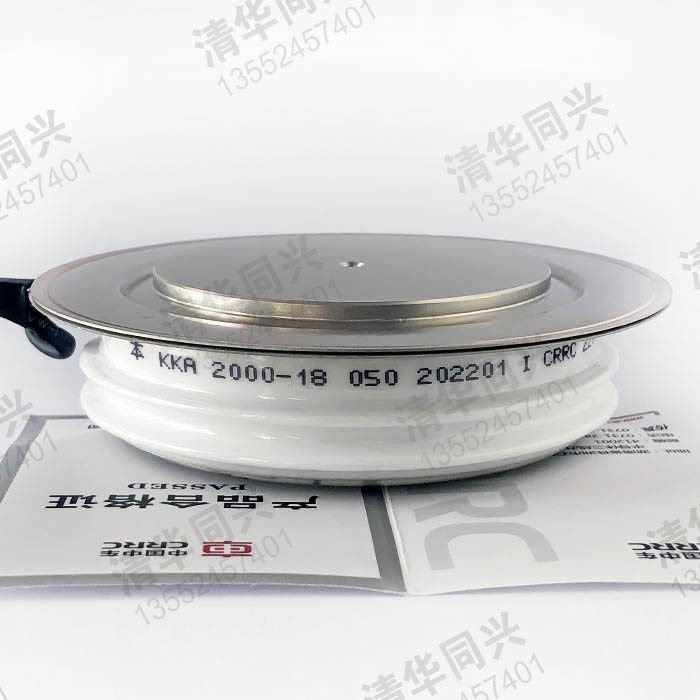

KKA 2000-18

KKA 2000-18

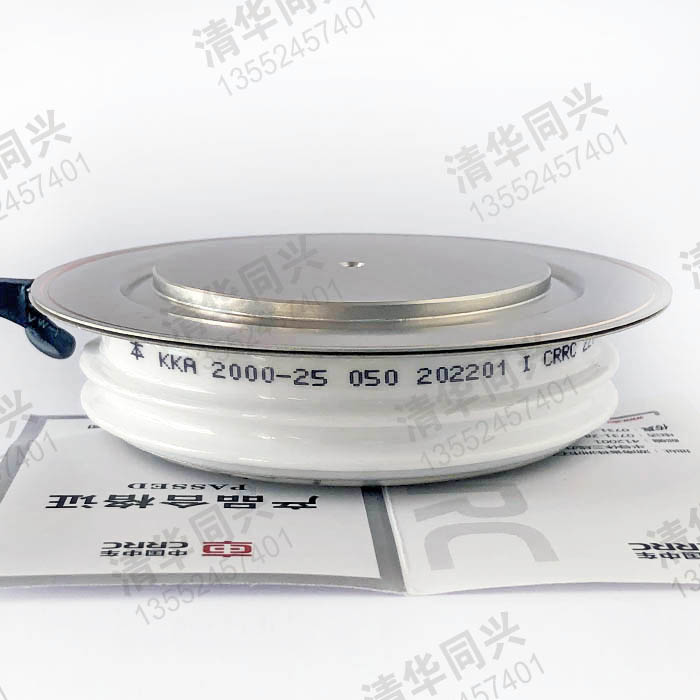

KKA 2000-25

KKA 2000-25

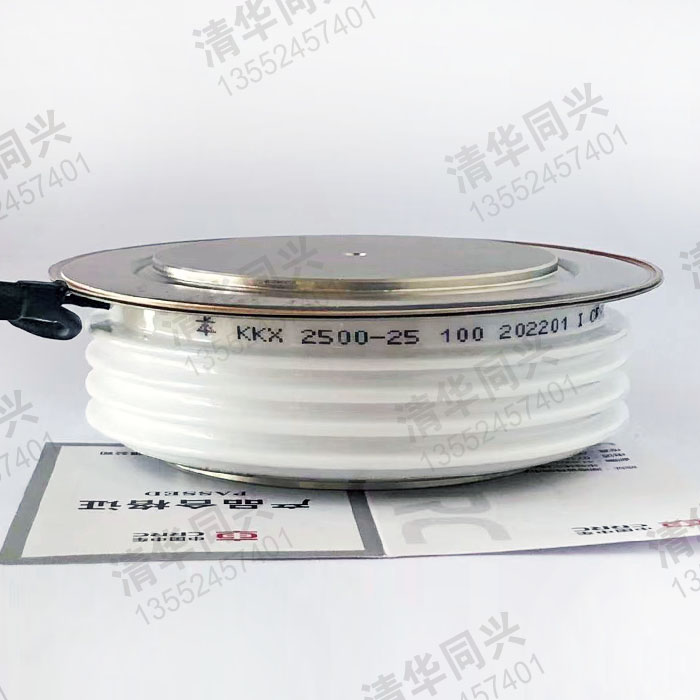

KKX 2500-25 35MM

KKX 2500-25 35MM

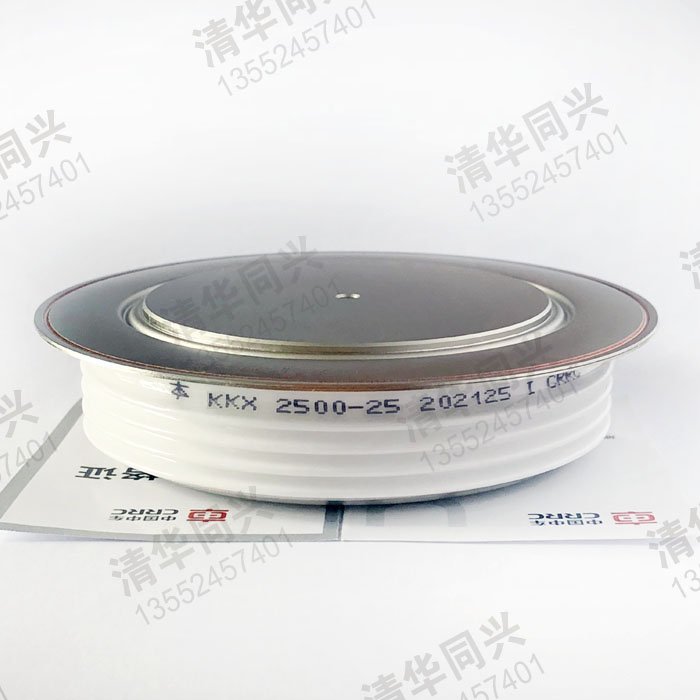

KKX 2500-25

KKX 2500-25

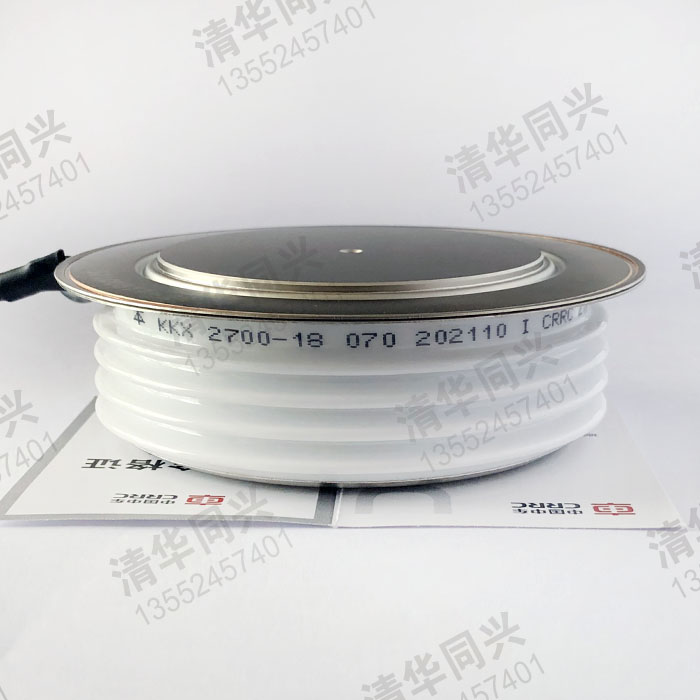

KKX 2700-18

KKX 2700-18

KKX 2900-18

KKX 2900-18


型号 TYPE
_**=VRRM/100		 IT(AV)
@TC=55℃
A		 VDRM VRRM
V		 ITSM
@TVJM &10ms
kA		 VTM
@ITM &TC=25℃		 TVJM
℃		 RthJC
K/W		 RthCH
K/W		 tq F
±10%
kN		 外形 Outline
A V
电压范围1200V (Up to 1200V)
KK8 800 ** 850 800-1200 10.7 1500 2.08 125 0.035 0.008 25 15 KP
KK9 1300 ** 1380 800-1200 17.4 2000 1.85 125 0.02 0.005 25 22 KPA
KK4 1600 ** 1680 800-1200 21.1 2000 1.75 125 0.018 0.005 25 30 KPA
KKA 2100 ** 2190 800-1200 27.5 3000 2.00 125 0.0124 0.004 25 45 KPA
KKX 2900 ** 2950 800-1200 31.6 4000 1.80 125 0.01 0.003 25 56 KPX
电压范围1400V (Up to 1400V)
KK8 700 ** 750 1200-1400 9.5 1500 2.45 125 0.035 0.008 35 15 KP
KK9 1200 ** 1270 1200-1400 16.0 2000 2.00 125 0.02 0.005 35 22 KPA
KK4 1600 ** 1670 1200-1400 20.2 2000 1.85 125 0.018 0.005 35 30 KPA
KKA 2100 ** 2110 1200-1400 26.6 3000 2.15 125 0.0124 0.004 35 45 KPA
KKX 2900 ** 2300 1200-1400 30.9 4000 1.90 125 0.01 0.003 35 56 KPX
电压范围2000V (Up to 2000V)
KK8 600 ** 680 1600-2000 8.6 1500 2.80 125 0.035 0.008 50 15 KP
KK9 1200 ** 1210 1600-2000 15.1 2000 2.15 125 0.02 0.005 50 22 KPA
KK4 1500 ** 1510 1600-2000 19.0 2000 2.00 125 0.018 0.005 50 30 KPA
KKA 2000 ** 2010 1600-2000 25.3 3000 2.30 125 0.0124 0.004 50 45 KPA
KKX 2700 ** 2740 1600-2000 28.9 4000 2.10 125 0.01 0.003 50 56 KPX
电压范围3000V (Up to 3000V)
KKA 2000 ** 2000 2200-2500 25.2 3000 2.47 125 0.0124 0.004 65 45 KPA
KKX 2500 ** 2520 2200-2500 26.4 4000 2.80 125 0.01 0.003 65 56 KPX
KKX 3000 ** 3087 3000-3000 32.0 4000 2.80 125 0.01 0.003 100 56 KPX
KKB 3000 ** 3000 2500-3000 32.2 4000 2.80 125 0.007 0.002 100 70 KPB
KKC 4000 ** 4016 2500-3000 42.3 6000 2.80 125 0.0057 0.002 100 90 KHC
电压范围3500V (Up to 3500V)
KKX 2000 ** 2008 3200-3500 21.2 3000 2.95 125 0.01 0.003 120 56 KPX
KKB 2500 ** 2521 3200-3500 27.0 4000 3.20 125 0.007 0.002 120 70 KPB
KKC 3000 ** 3005 3200-3500 32.3 4000 3.00 125 0.0057 0.002 120 90 KHC
电压范围4500V (Up to 4500V)
KKB 2200 ** 2320 4000-4200 24.9 3000 3.20 125 0.007 0.002 150 70 KPB
KKC 2700 ** 2766 4000-4200 31.2 4000 3.40 125 0.0057 0.002 150 90 KHC
KKC 2700 ** 2766 4200-4500 36.8 4000 3.20 125 0.0057 0.002 200 90 KHC
